In quadrilateral ACBD, AC = AD and AB bisects ∠A (see figure). Show that ∆ABC ≅ ∆ABD. What can you say about BC and BD?

In quadrilateral ACBD, we have AC = AD and AB being the bisector of ∠A.

Now, in ∆ABC and ∆ABD,

AC = AD [Given]

∠CAB = ∠DAB [AB bisects ∠CAD] AB = AB [Common]

∴ ∆ABC ≅ ∆ABD [By SAS congruency]

So, BC = BD [By C.P.C.T.]

ABCD is a quadrilateral in which AD = BC and ∠DAB = ∠CBA (see figure).

Prove that

(i) ∆ABD≅ ∆BAC

(ii) BD = AC

(iii) ∠ABD = ∠BAC.

In quadrilateral ABCD, we have

AD = BC and ∠DAB = ∠CBA

In ∆ABD and ∆BAC,

AD = BC [Given]

∠DAB = ∠CBA [Given]

AB = BA [Common]

∴ ∆ABD ≅ ∆BAC [By SAS congruency]

AD and BC are equal perpendiculars to a line segment AB (see figure).

Show that CD bisects AB.

In ∆OBC and ∆OAD, we have

∠OBC = ∠OAD [Each 90°]

BC = AD [Given]

∠BOC = ∠AOD [Vertically opposite angles]

∴ ∆OBC≅ ∆OAD

[By ASA congruency]

⇒ OB = OA [By C.P.C.T.]

i.e., O is the mid-point of AB.

Thus, CD bisects AB.

l and m are two parallel lines intersected by another pair of parallel lines p and q (see figure). Show that ∆ABC≅ ∆CDA.

∵ p q and AC is a transversal,

∴ ∠BAC = ∠DCA ...(1)

[Alternate interior angles]

Also l m and AC is a transversal,

∴ ∠BCA = ∠DAC ...(2)

[Alternate interior angles]

Now, in ∆ABC and ∆CDA, we have

∠BAC = ∠DCA [From 1]

CA = AC [Common]

∠BCA = ∠DAC [From 2]

∴ ∆ABC ≅ ∆CDA

[By ASA congruency]

Line l is the bisector of an ∠A and B is any point on l. BP and BQ are perpendiculars from B to the arms of ∠A (see figure). Show that:

(i) ∆APB ≅ ∆AQB

(ii) BP = BQ or B is equidistant from the arms of ∠A.

We have, l is the bisector of ∠QAP.

∴ ∠QAB = ∠PAB and

∠Q = ∠P [Each 90°]

⇒ ∠ABQ = ∠ABP

[By angle sum property of ∆]

(i) Now, in ∆APB and ∆AQB, we have

∠ABP = ∠ABQ [Proved above]

AB = AB [Common]

∠PAB = ∠QAB [Given]

∴ ∆APB≅ ∆AQB [By ASA congruency]

(ii) Since∆APB ≅ ∆AQB

⇒ BP = BQ [By C.P.C.T.]

i.e., [Perpendicular distance of B from AP]

= [Perpendicular distance of B from AQ]

Thus, the point B is equidistant from the arms of ∠A.

In the given figure, AC = AE, AB = AD and ∠BAD = ∠EAC. Show that BC = DE.

We have ∠BAD = ∠EAC

Adding ∠DAC on both sides, we have ∠BAD + ∠DAC = ∠EAC + ∠DAC

⇒ ∠BAC = ∠DAE

Now, in ∆ABC and ∆ADE, we have

∠BAC = ∠DAE [Proved]

AB = AD [Given]

AC = AE [Given]

∴ ∆ABC≅ ∆ADE

[By SAS congruency]

⇒ BC = DE. [By C.P.C.T.]

AB is a line segment and P is its mid-point. D and E are points on the same side of AB such that ∠BAD = ∠ABE and ∠EPA = ∠DPB (see figure). Show that

(i) ∆DAP ≅ ∆EBP

(ii) AD = BE

We have, P is the mid-point of AB.

AP = BP

∠EPA = ∠DPB [Given]

Adding ∠EPD on both sides, we get

∠EPA + ∠EPD = ∠DPB + ∠EPD

⇒ ∠APD = ∠BPE

(i) Now, in ∆DAP and ∆EBP, we have

∠PAD = ∠PBE [∠BAD = ∠ABE]

AP = BP [Proved]

∠DPA = ∠EPB [Proved]

∴ ∆DAP≅ ∆ EBP [By ASA congruency]

(ii) Since, ∆DAP≅ ∆EBP

⇒ AD = BE [By C.P.C.T.]

In right triangle ABC, right angled at C, M is the mid-point of hypotenuse AB. C is joined to M and produced to a point D such thatDM = CM. Point D is joined to point B (see figure). Show that

(i) ∆AMC≅ ∆BMD

(ii) ∠DBC is a right angle.

(iii) ∆DBC≅ ∆ACB

(iv)

Since M is the mid-point of AB. [Given]

∴ BM = AM

(i) In ∆AMC and ∆BMD, we have

CM = DM [Given]

∠AMC = ∠BMD

[Vertically opposite angles]

AM = BM [Proved]

∴ ∆AMC ≅ ∆BMD

[By SAS congruency]

(ii) Since ∆AMC≅ ∆BMD

⇒ ∠MAC = ∠MBD [By C.P.C.T.]

But they form a pair of alternate interior angles.

∴ AC ∥ DB

Now, BC is a transversal which intersects parallel lines AC and DB,

∴ ∠BCA + ∠DBC = 180°

[Co-interior angles]

But ∠BCA = 90°

[∆ABC is right angled at C]

∴ 90° + ∠DBC = 180°

⇒ ∠DBC = 90°

(iii) Again, ∆AMC ≅ ∆BMD [Proved]

∴ AC = BD [By C.P.C.T]

Now, in ∆DBC and ∆ACB, we have

BD = CA [Proved]

∠DBC = ∠ACB [Each 90°]

BC = CB [Common]

∴ ∆DBC ≅ ∆ACB

[By SAS congruency]

(iv) As ∆DBC ≅ ∆ACB

⇒ DC = AB [By C.P.C.T. ]

But DM= CM [Given]

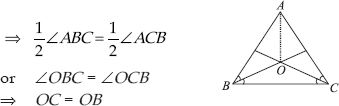

In an isosceles triangle ABC, with AB = AC, the bisectors of ∠B and ∠C intersect each other at O. Join A to O.
Show that:

(i) OB = OC

(ii)AO bisects ∠A

In ∆ABC, we have

AB = AC [Given]

∴ ∠ABC = ∠ACB

[Angles opposite to equal sides of a ∆ are equal]

[Sides opposite to equal angles of a ∆ are equal]

(ii) In ∆ABO and ∆ACO, we have

AB = AC [Given]

OB = OC [Proved]

∴ ∆ABO ≅ ∆ACO [By SAS congruency]

⇒ ∠OAB = ∠OAC [By C.P.C.T]

⇒ AO bisects ∠A.

In ∆ABC, AD is the perpendicular bisector of BC (see figure). Show that ABC is an isosceles triangle
in which AB = AC.

Since AD is bisector of BC.

∴ BD = CD

Now, in ∆ABD and ∆ACD, we have

AD = AD [Common]

∠ADB = ∠ADC = 90°

BD = CD [Proved]

∴ ∆ABD ≅ ∆ACD [By SAS congruency]

⇒ AB = AC [By C.P.C.T]

Thus, ABC is an isosceles triangle.

ABC is an isosceles triangle in which altitudes BE and CF are drawn to equal sides AC and AB respectively (see figure). Show that these altitudes are equal.

∆ABC is an isosceles triangle.

∴ AB = AC

⇒ ∠ACB = ∠ABC [Angles opposite to
equal sides of a ∆ are equal]

⇒ ∠BCE = ∠CBF

Now, in ∆BEC and ∆CFB and we have

∠BCE = ∠CBF [Proved]

∠BEC = ∠CFB [Each 90°]

BC = CB [Common]

∴ ∆BEC ≅ ∆CFB [By AAS congruency]

So, BE = CF [By C.P.C.T]

ABC is a triangle in which altitudes BE and CF to sides AC and AB are equal (see figure).
Show that

(i) ∆ABE≅ ∆ACF

(ii) AB = AC, i.e., ABC is an isosceles triangle.

(i) In ∆ABE and ∆ACF, we have

∠AEB = ∠AFC

[Each 90° as BE ⊥ AC and CF ⊥ AB]

∠A = ∠A [Common]

BE = CF [Given]

∴ ∆ABE ≅ ∆ACF [By AAS congruency]

(ii) Since, ∆ABE ≅ ∆ACF

∴ AB = AC [By C.P.C.T]

ABC and DBC are two isosceles triangles on the same base BC (see figure). Show that ∠ABD = ∠ACD.

In ∆ABC, we have

AB = AC [ABC is an isosceles triangle]

∴ ∠ABC = ∠ACB ...(1)

[Angles opposite to equal sides of a ∆ are equal]

Again, in ∆BDC, we have

BD = CD [BDC is an isosceles triangle]

∴ ∠CBD = ∠BCD ...(2)

[Angles opposite to equal sides of a ∆ are equal]

Adding (1) and (2), we have

∠ABC + ∠CBD = ∠ACB + ∠BCD

⇒ ∠ABD = ∠ACD.

ABC is an isosceles triangle in which AB = AC. Side BA is produced to D such that AD = AB (see figure). Show that ∠BCD is a right angle.

AB = AC [Given] ...(1)

AB = AD [Given] ...(2)

From (1) and (2), we have

AC = AD

Now, in ∆ABC, we have

∠B + ∠ACB + ∠BAC = 180°

[Angle sum property of ∆]

⇒ 2∠ACB + ∠BAC = 180° ...(3)

[∠B = ∠ACB (Angles opposite to equal sides of a ∆ are equal)]

Similarly, In ∆ACD,

∠D + ∠ACD + ∠CAD = 180°

⇒ 2∠ACD + ∠CAD = 180° ...(4)

[∠D = ∠ACD (Angles opposite to equal sides of a ∆ are equal]

Adding (3) and (4), we have

2∠ACB + ∠BAC + 2∠ACD + ∠CAD

= 180° + 180°

⇒ 2[∠ACB + ∠ACD] + [∠BAC + ∠CAD]

= 360°

⇒ 2∠BCD + 180° = 360°

[∠BAC and ∠CAD form a linear pair]

⇒ 2∠BCD = 360° – 180° = 180°

Thus, ∠BCD = 90°

BC is a right angled triangle in which ∠A = 90° and AB = AC. Find ∠B and ∠C.

In ∆ABC, we have

AB = AC [Given]

∴ Their opposite angles
are equal.

⇒ ∠ACB = ∠ABC

Now, ∠A + ∠B + ∠C = 180°

⇒ 90° + ∠B + ∠C = 180° [∠A = 90°(Given)] ⇒ ∠B + ∠C = 180° – 90°

But ∠ABC = ∠ACB,

i.e., ∠B = ∠C

Thus, ∠B = 45° and ∠C = 45°

Show that the angles of an equilateral triangle are 60° each.

SOLUTION: In ∆ABC, we have

AB = BC = CA

[ABC is an equilateral triangle]

AB = BC ⇒ ∠A = ∠C ...(1)

[Angles opposite to equal sides of a ∆ are equal]

Similarly, AC = BC ⇒ ∠A = ∠B ...(2)

From (1) and (2), we have

∠A = ∠B = ∠C

Let ∠A = ∠B = ∠C = x

Since, ∠A + ∠B + ∠C = 180°

[Angle sum property of ∆]

∴ x + x + x = 180°

⇒ 3x = 180° ⇒ x = 60°

∴ ∠A = ∠B = ∠C = 60°

Thus, the angles of an equilateral triangle are 60° each.

∆ABC and ∆DBC are two isosceles triangles on the same base BC and vertices A and D are on the same side of BC (see figure). If AD is extended to intersect BC at P, show that

(i) ∆ABD≅ ∆ACD

(ii) ∆ABP≅ ∆ACP

(iii) AP bisects ∠A

as well as ∠D.
(iv) AP is the perpendicular bisector of BC.

(i) In ∆ABD and ∆ACD, we have

AB = AC [Given]

AD = AD [Common]

BD = CD [Given]

∴ ∆ABD ≅ ∆ACD [By SSS congruency]

⇒ ∠BAD = ∠CAD [By C.P.C.T] ...(1)

(ii) In ∆ABP and ∆ACP, we have

AB = AC [Given]

∠BAP = ∠CAP [Proved] [From (1)]

∴ AP = AP [Common]

∴ ∆ABP ≅ ∆ACP

[By SAS congruency]

(iii) Since, ∆ABP ≅ ∆ACP

⇒ ∠BAP = ∠CAP [By C.P.C.T]

∴ AP is the bisector of ∠A.

Again, in ∆BDP and ∆CDP, we have

BD = CD [Given]

DP = DP [Common]

BP = CP [∵ ∆ABP ≅ ∆ACP]

⇒ ∆BDP ≅ ∆CDP [By SSS congruency]

∴ ∠BDP = ∠CDP [By C.P.C.T]

⇒ DP (or AP) is the bisector of ∠BDC

∴ AP is the bisector of ∠A as well as ∠D.

(iv) As, ∆ABP ≅ ∆ACP

⇒ ∠APB = ∠APC, BP = CP

[By C.P.C.T]

But ∠APB + ∠APC = 180° [Linear Pair]

∴ ∠APB = ∠APC = 90°

⇒ AP ⊥ BC

also BP = CP

Hence, AP is the perpendicular bisector of BC.

Thus, the angles of an equilateral triangle are 60° each.

AD is an altitude of an isosceles triangle ABC in which AB = AC. Show that

(i) AD bisects BC

(ii) AD bisects ∠A

(i) In right ∆ABD and ∆ACD, we have

AB = AC [Given]

∠ADB = ∠ADC [Each 90°]

AD = AD [Common]

∴ ∆ABD ≅ ∆ACD

[By RHS congruency]

So, BD = CD [By C.P.C.T.]

⇒ D is the mid-point of BC

or AD bisects BC.

(ii) Since, ∆ABD ≅ ∆ACD,

⇒ ∠BAD = ∠CAD [By C.P.C.T.]

So, AD bisects ∠A

Two sides AB and BC and median AM of one triangle ABC are respectively equal to sides PQ and QR and median PN of ∆PQR (see figure). Show that

(i) ∆ABM ≅ ∆PQN

(ii) ∆ABC ∆PQR

In ∆ABC, AM is the median [Given]

In ∆PQR, PN is the median [Given]

And BC = QR [Given]

⇒ BM = QN ...(3) [From (1) and (2)]

(i) In ∆ABM and ∆PQN, we have

AB = PQ [Given]

AM = PN [Given]

BM = QN [From (3)] ∴ ∆ABM ≅ ∆PQN [By SSS congruency]

(ii) Since ∆ABM ≅ ∆PQN

⇒ ∠B = ∠Q ...(4) [By C.P.C.T.]

Now, in ∆ABC and ∆PQR, we have

∠B = ∠Q [From (4)]

AB = PQ [Given]

BC = QR [Given]

∴ ∆ABC ≅ ∆PQR [By SAS congruency]

BE and CF are two equal altitudes of a triangle ABC. Using RHS congruence rule, prove that the triangle ABC is isosceles.

SOLUTION: Since BE ⊥ AC [Given]

∴ BEC is a right triangle

such that ∠BEC = 90°

Similarly, ∠CFB = 90°

Now, in right ∆BEC and right ∆CFB, we have

BE = CF [Given]

BC = CB [Common]

∠BEC = ∠CFB = 90°

∴ ∆BEC ≅ ∆CFB [By RHS congruency]

So, ∠BCE = ∠CBF [By C.P.C.T.]

or ∠BCA = ∠CBA

Now, in ∆ABC, ∠BCA = ∠CBA

⇒ AB = AC

[Sides opposite to equal angles of a ∆ are equal]

∴ ABC is an isosceles triangle.

ABC is an isosceles triangle with AB = AC. Draw AP ⊥ BC to show that ∠B = ∠C.

SOLUTION: We have AP ⊥ BC [Given]

∠APB = 90° and ∠APC = 90°

In ∆ABP and ∆ACP, we have

∠APB = ∠APC [Each 90°]

AB = AC [Given]

AP = AP [Common]

∴ ∆ABP ≅ ∆ACP [By RHS congruency]

So, ∠B = ∠C [By C.P.C.T.]

Show that in a right angled triangle, the hypotenuse is the longest side.

SOLUTION: Let us consider ∆ABC such that ∠B = 90°

∴ ∠A + ∠B + ∠C = 180°

⇒ [∠A + ∠C ] + ∠B = 180° ⇒ ∠A + ∠C = 90° ⇒ ∠A + ∠C = ∠B

∴ ∠B > ∠A and ∠B > ∠C

⇒ Side opposite to ∠B is longer than the side opposite to ∠A.

i.e., AC > BC. Similarly, AC > AB.

Therefore, we get AC is the longest side. But AC is the hypotenuse of the triangle.

Thus, hypotenuse is the longest side.

In the given figure, sides AB and AC of ∆ABC are extended to points P and Q respectively. Also, ∠PBC < ∠QCB.
Show that AC > AB.

∠ABC + ∠PBC = 180° [Linear pair]

and ∠ACB + ∠QCB = 180° [Linear pair]

But ∠PBC < ∠QCB [Given]

⇒ 180° – ∠PBC > 180° – ∠QCB

⇒ ∠ABC > ∠ACB

⇒ The side opposite to ∠ABC > The side opposite to ∠ACB

⇒ AC > AB.

In the figure, ∠B < ∠A and ∠C < ∠D. Show that AD < BC.

Since ∠B < ∠A [Given]

⇒ ∠A > ∠B

∴ OB > OA ...(1)

[Side opposite to greater angle is longer] Similarly, OC > OD ...(2)

Adding (1) and (2), we have

OB + OC > OA + OD

⇒ BC > AD ⇒ AD < BC.

AB and CD are respectively the smallest and longest sides of a quadrilateral ABCD(see figure). Show that ∠A > ∠
C and ∠B > ∠D.

Let us join AC

Now, in ∆ABC, AB < BC

[∴AB is the smallest side of quadrilateral ABCD]

⇒ BC > AB

⇒ ∠BAC > ∠BCA ...(1)

[Angle opposite to longer side of ∆ is larger]

Again, in ∆ACD, CD > AD

[∵ CD is the longest side of the quadrilateral ABCD]

⇒ ∠CAD > ∠ACD ...(2)

[Angle opposite to longer side of ∆ is larger]

Adding (1) and (2), we get

∠BAC + ∠CAD > ∠BCA + ∠ACD

⇒ ∠A > ∠C

Similarly, by joining BD, we have

∠B > ∠D.

In the figure, PR > PQ and PS bisects ∠QPR. Prove that ∠PSR > ∠PSQ.

In ∆PQR, PS bisects ∠QPR [Given]

∴ ∠QPS = ∠RPS

and PR > PQ [Given]

⇒ ∠PQS > ∠PRS

[Angle opposite to longer side of ∆ is larger]

⇒ ∠PQS + ∠QPS > ∠PRS + ∠RPS ...(1)

[∠QPS = ∠RPS]

∵ Exterior ∠PSR = [∠PQS + ∠QPS]

and Exterior ∠PSQ = [∠PRS + ∠RPS]

[An exterior angle is equal to the sum of interior opposite angles]

Now, from (1), we have

∠PSR > ∠PSQ.

Show that of all line segments drawn from a given point not on it, the perpendicular line segment is the shortest.

SOLUTION: Let us consider the

∆PMN such that

∠M = 90°

Since, ∠M + ∠N + ∠P = 180°

[Sum of angles of a triangle]

∵ ∠M = 90° [PM ⊥ l]

So, ∠N + ∠P = ∠M

⇒ ∠N < ∠M

⇒ PM < PN ...(1)

Similarly, PM < PN1 ...(2)

PM < PN2 ...(3)

From (1), (2) and (3), we have PM is the smallest line segment drawn from P on the line l. Thus, the perpendicular segment is the shortest line segment drawn on a line from a point not on it

ABC is a triangle. Locate a point in the interior of ∆ABC which is equidistant from all the vertices of ∆ABC.

SOLUTION: Let us consider a ∆ABC.

Draw l the perpendicular bisector of AB.

Draw m the perpendicular bisector of BC.

Let the two perpendicular bisectors l and m meet at O.

O is the required point which is equidistant from A, B and C.

Note: If we draw a circle with centre O and radius OB or OC, then it will pass through A, B and C. The point O is called circumcentre of the triangle.

In a triangle, locate a point in its interior which is equidistant from all the sides of the triangle.

SOLUTION: Let us consider a ∆ABC.

Draw l the bisector of ∠B.

Draw m the bisector of ∠C.

Let the two bisectors l and m meet at O.

Thus, O is the required point which is equidistant from the sides of ∆ABC.

Note: If we draw OM ⊥ BC and draw a circle with O as centre and OM as radius, then the circle will touch the sides of the triangle.

Point O is called incentre of the triangle.

In a huge park, people are concentrated at three points (see figure):

A : where there are different slides and swings for children.

B : near which a man-made lake is situated.

C : which is near to a large parking and exit.

Where should an ice cream parlour be set up so that maximum number of persons can approach it?

[Hint: The parlour should be equidistant from A, B and C]

Let us join A and B, and draw l the perpendicular bisector of AB.

Now, join B and C, and draw m the perpendicular bisector of BC. Let the perpendicular bisectors l and m meet at O. The point O is the required point where the ice cream parlour be set up.

Note: If we join A and C and draw the perpendicular bisectors, then it will also meet (or pass through) the point O.

Complete the hexagonal and star shaped Rangolies [see fig. (i) and (ii)] by filling them with as many equilateral triangles of side 1 cm as you can. Count the number of triangles in each case.

Which has more triangles?

It is an activity. We require 150 equilateral triangles of side 1 cm in the figure (i) and 300 equilateral triangles in the figure (ii).

∴ The figure (ii) has more triangles.
